support dentist, how to send us good quality digital data

A good digital data must consider below 4 items:
1. data accuracy;
2. Margin；

3. Occlusion
4. undercut

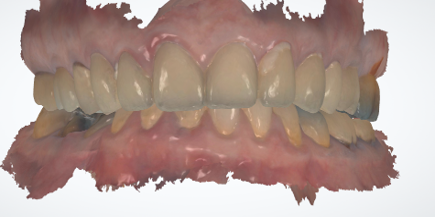

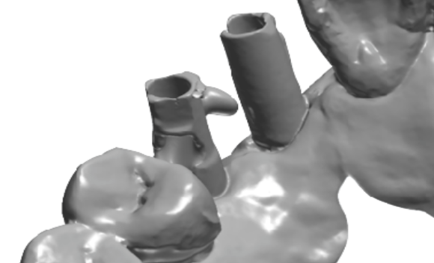

Typically, a shipment (fixed or removable) requires a working model, an opposing model, and an occlusion relationship. Additionally, it may includes items such as: preoperative models, reference models, intraoral metal frameworks, wax rims, etc. (Implant) shipments require scanning sleeves, scanning rods, opposing models, and occlusion.

data can be acceptable:

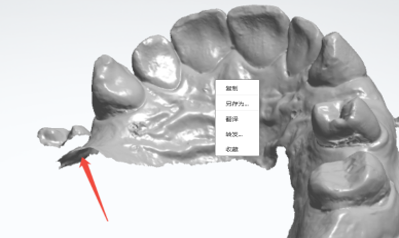

Model was not be completed scanned but does not effect to work area, technician can fix this data to select work area for the following design task.

Data are unacceptable:

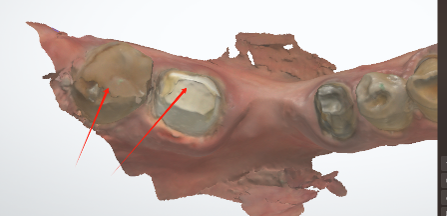

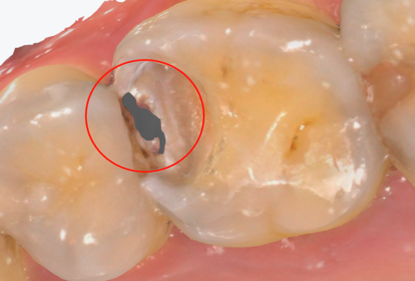

1. Deformation of the abutment tooth scan directly affects seating, high risk to cause redo

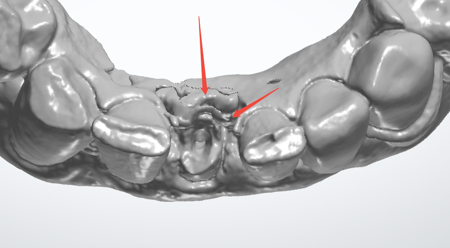

2. Overlapping deformation in the scan can lead to improper fitting issue.
